AZS Bricks
AZS Bricks Introduce

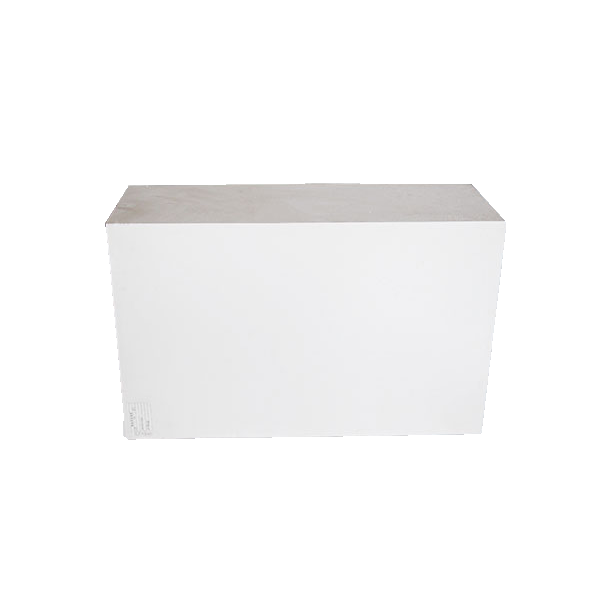

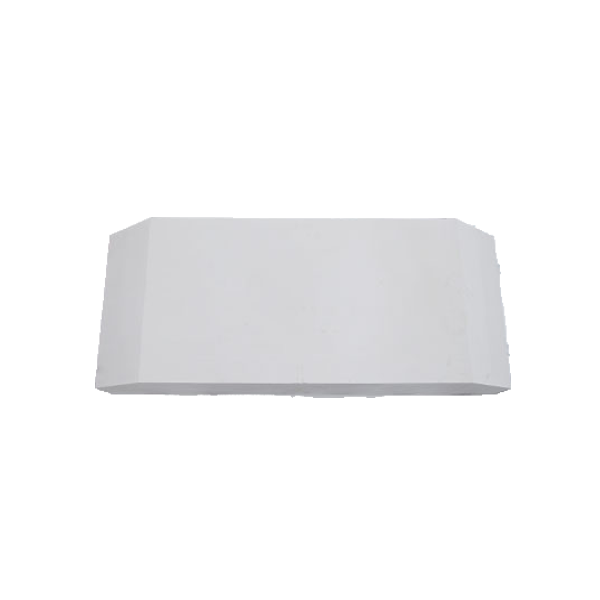

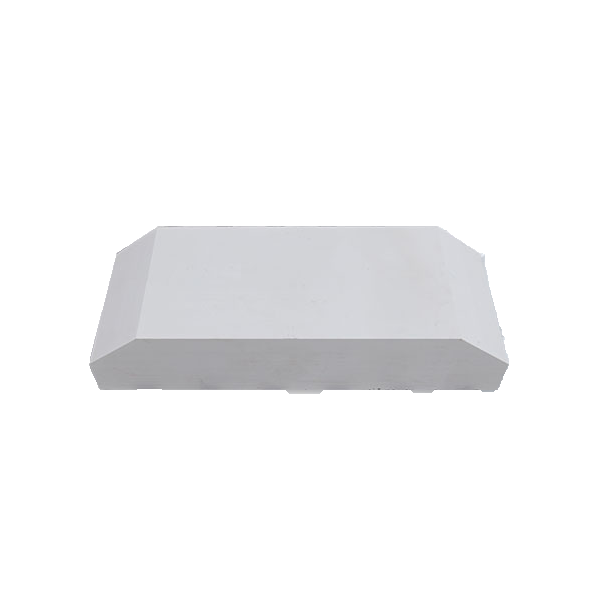

AZS Brick is a kind of fused cast zirconia-corundum refractory brick which is short writing of abbreviation that AZS from “A” of Al2O3, “Z” of ZrO2 and “S” of SiO2. Such as No. 33 fused cast zirconia-corundum refractory brick adopts the “AZS-33#” as its abbreviation, No. 36 fused cast zirconia-corundum refractory brick adopts the “AZS-36#” as its abbreviation and No. 41 fused cast zirconia-corundum refractory brick adopts the “AZS-41#” as its abbreviation.
Application of AZS Bricks
The AZS bricks are mainly applied for the top and bottom structure of melting chamber. Such as melting tank, the tank wall brick, the paving brick, the forehearths and so on. The high corrosion part shall be AZS 41#, such as the feeding part, the throat, the bubble brick, the furnace weir, the burner block, the tongue brick the discharging part and so on.
AZS Bricks Technical Data
Chemical composition | AZS-33 | AZS-36 | AZS-41 | |
ZrO2 | ≥33 | ≥35 | ≥40 | |
SiO2 | ≤16.0 | ≤14 | ≤13.0 | |
Al2O3 | a little | a little | a little | |
Na2O | ≤1.5 | ≤1.6 | ≤1.3 | |
Fe2O3+TiO2 | ≤0.3 | ≤0.3 | ≤0.3 | |
Physical Properties | ||||
Bulk density(g/cm3): | 3.5-3.6 | 3.75 | 3.9 | |
Cold crushing Mpa | 350 | 350 | 350 | |
Thermal expansion coefficient (1000°C) | 0.8 | 0.8 | 0.8 | |
Exudation temp. of glass phase | 1400 | 1400 | 1400 | |
Corrocion resistance of glass melt(mm/24h) | 1.6 | 1.5 | 1.3 | |
Density | PT QX | 3.4 | 3.45 | 3.55 |
