High Alumina Refractory Ball

Short Description:

High Alumina Refractory Ball Product DescriptionRefractory high alumina balls are made of industrial alumina and refractory kaolin as the main raw materials, which are made by scientific formula, form...


  • · Large volume density
  • · High refractoriness under load
  • · Low creep rate
  • · Good resistance to erosion,hydration,chalking and stripping
  • · Relatively good thermal shock resistance
  • · Easy operation,convenient replacement and recycling usage

Product Detail

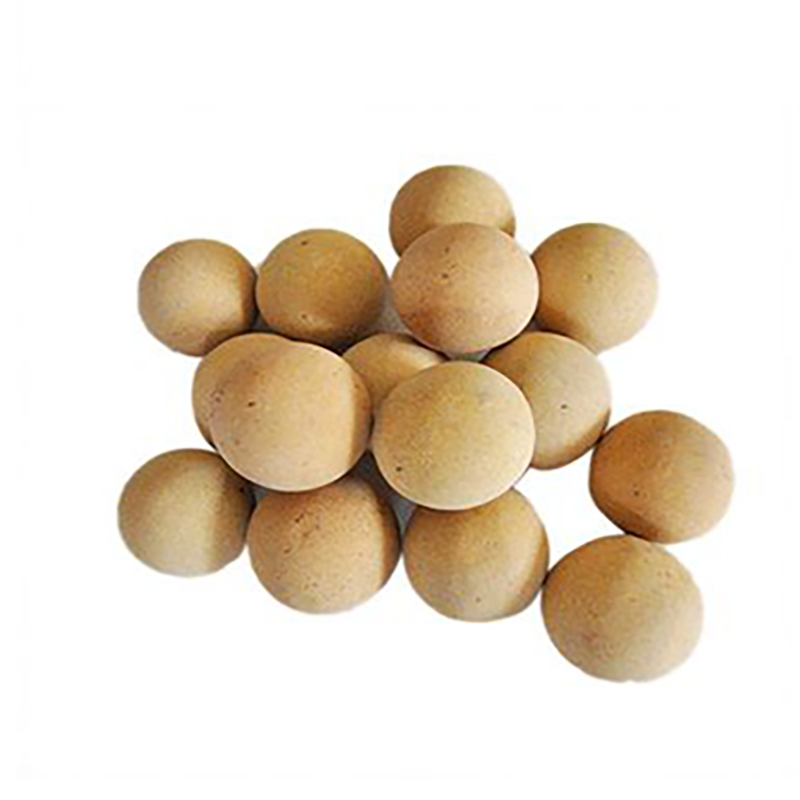

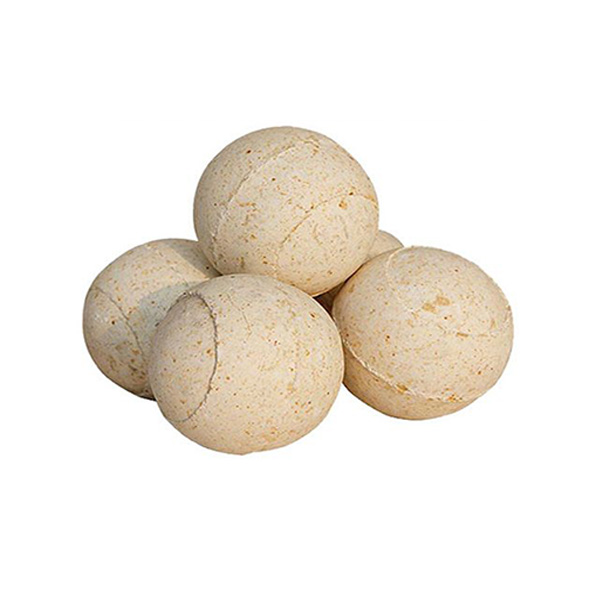

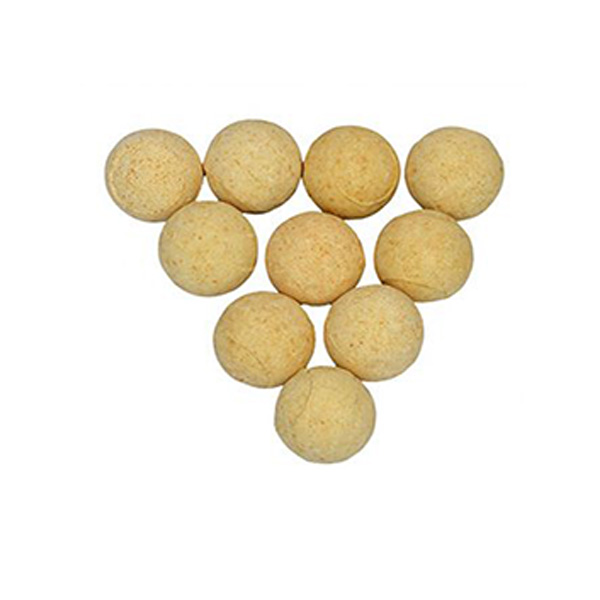

High Alumina Refractory Ball Product Description



Refractory high alumina balls are made of industrial alumina and refractory kaolin as the main raw materials, which are made by scientific formula, forming and hightemperature calcination.



Refractory alumina ball is divided into ordinary refractory ball and high aluminum resistance ball. Refractory porcelain ball high temperature resistance to high temperature can reach 1900 degrees, high mechanical strength

 and long-term use.



High Alumina Refractory Ball Features



1. high temperature resistant performance, the highest heat resistant ceramic ball temperature can reach 1900 degrees;

2. high mechanical strength, long use cycle;

3. good chemical stability, no chemical reaction with the material;

4. good thermal stability, high strength;


High Alumina Refractory Ball Technical date


ItemHigh alumina Low creepMulliteCorundum
Size(mm)40-8040-8040-8040-80
AL2O3(%)65707595
Refractoriness under load(°C)1450146015301650
Apparent Porosity(%)25232218
Bulk Density(g/cm3)2.32.42.53.1
Cold crushing strength(Mpa)13143236
Thermal shock resistance
(1100°Cwater cooling) cycle ≥
1510207
Refractoriness(°C)171017501800 1800



High Alumina Refractory Ball Applications



High alumina ball application in chemical fertilizer plant of high and low temperature transformation furnace, reformer, hydrogenation, desulfurization tank and methanation furnace, dispersed liquid, and supporting, covering

 and protecting catalyst role, can also be used in heating furnace of iron and steel industry and the transformation of equipment, ordinary refractory ball suitable for sulfuric acid and fertilizer industries converter and transform

 furnace, high aluminum refractory ball is suitable for industries such as steel, urea, hot blast furnace, heating and transformation furnace and other equipment.
